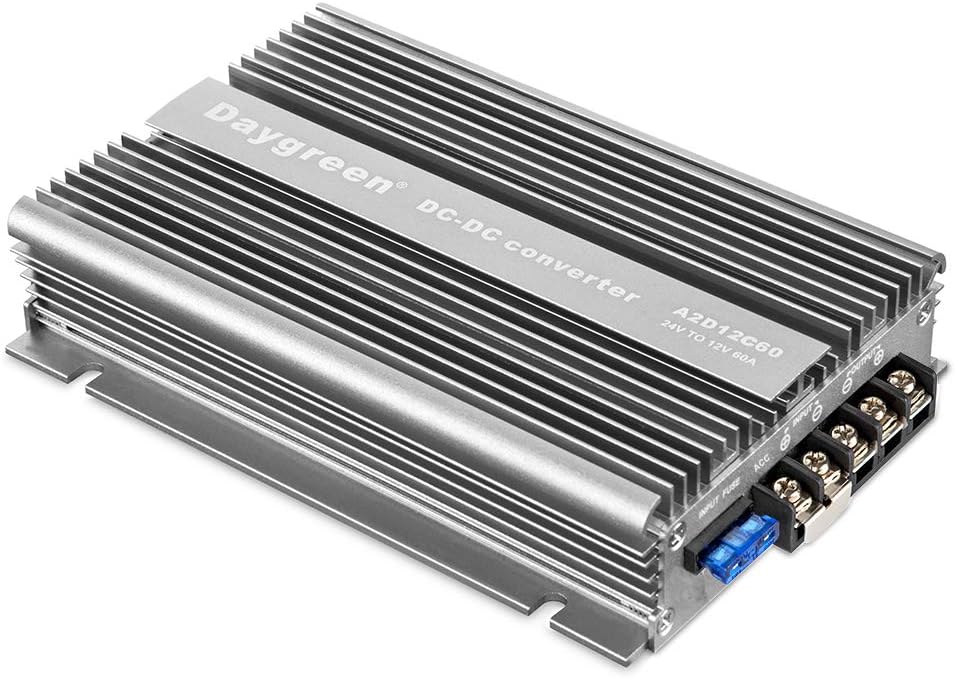

24V to 12V 60A 720W DC DC Voltage Regulator T620561
24V to 12V 60A 720W DC DC Voltage Regulator T620561
ISO 9001: 2015 Certificate, 100% full rated power and stable output voltage
100% burn-in test and 4 times quality inspection
Over current protection, Over voltage protection, Over temperature shutdown, Fuse built
Aluminium shell with epoxy potting and waterproof IP68
3 years warranty and 15 years lifetime

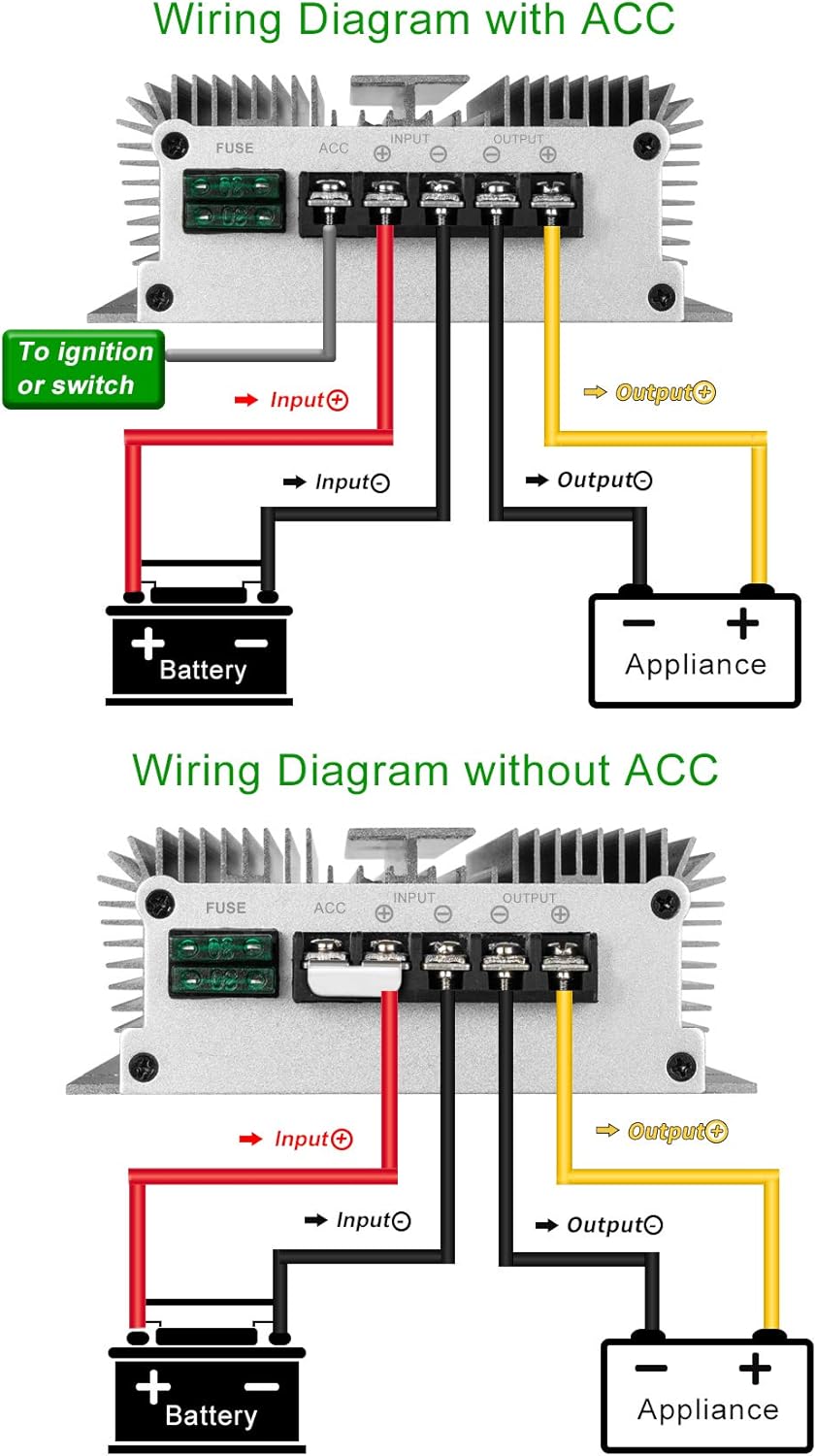

Wiring: ACC to Switch, INPUT+ to BAT+, INPUT- to BAT-, OUTPUT+ to LOAD+, OUTPUT- to LOAD-. If no need the ACC function, then use clamp insert ACC and INPUT+
Reminder: Never reverse the polarity. Use the enough big cable to avoid the voltage drop. Never connect to solar panel or wind turbine. Never charge the battery. Keep good air convection.
Daygreen P/N: A2D12C60
Efficiency: 96%
Input Voltage: 21-35VDC
Output Voltage: 12VDC
Output Current: 60A
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 160*113*35mm
Net Weight: 1kg
Case Operating Temperature: -40~85°C
Certificates: CE Rohs
Warranty: 3 years
MTBF: 100,000 hours
Application:
24V DC battery of vehicles as input power to 12VDC appliances as output load.
Questions
What is ACC?
ACC works as a switch when your vehicles have ACC to avoid battery drains.
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.7=14.28A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
